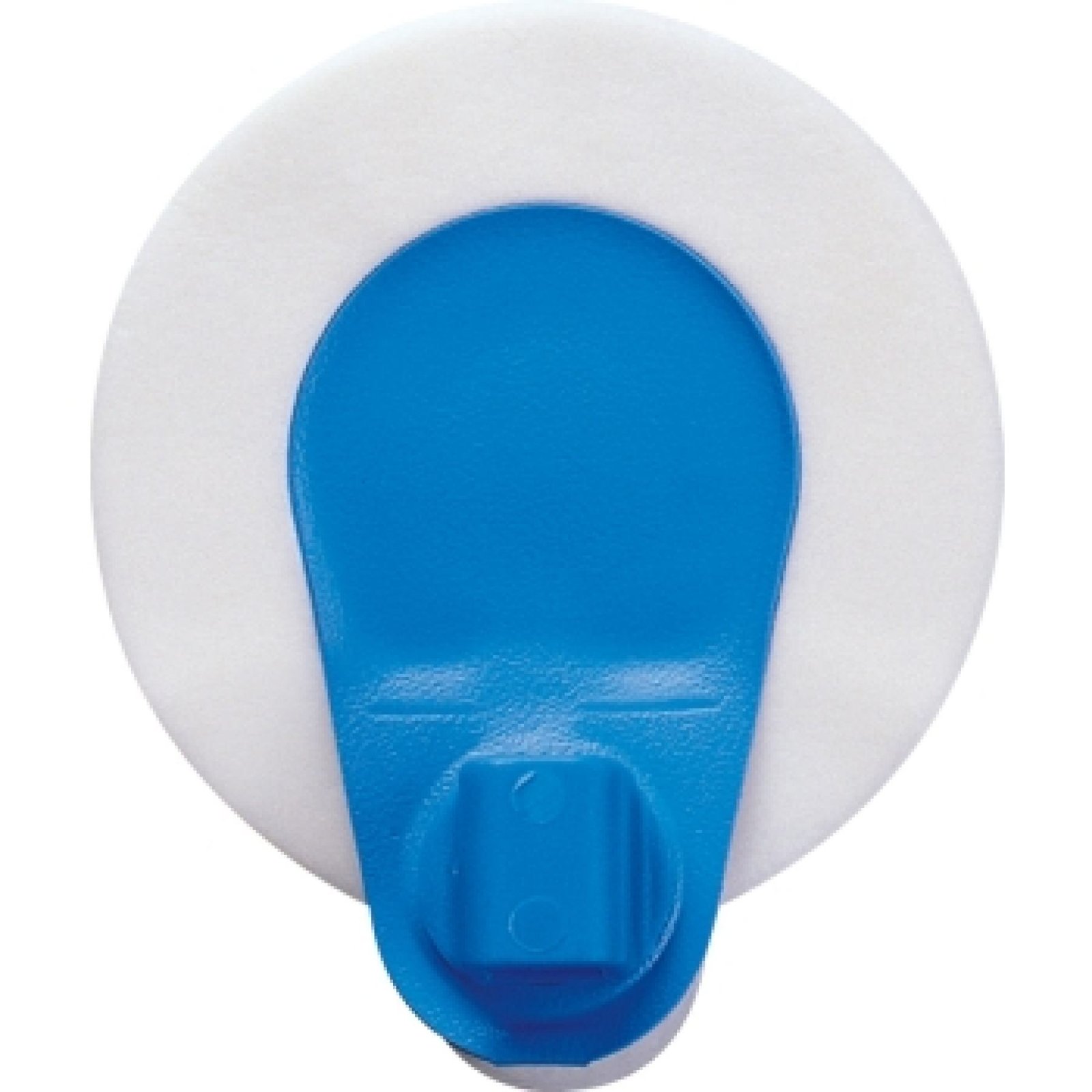

ECG Electrodes M-OO-A Blue Sensor

Key Features & Benefits

• Highly conductive wet gel for stable and reliable signal traces
• Superior adhesion minimises electrode displacement and false alarms
• Occlusive backing resists fluids, maintaining performance in demanding conditions
• Unique offset connector design reduces motion artefacts and signal interference
• High-quality Ag/AgCl sensor ensures excellent trace quality and accuracy

Specifications

Dimensions:

• Electrode size (L × W): 40.8 × 34 mm
• Skin contact size: 34 mm
• Adhesive area: 754 mm²
• Height (excluding connector/wire): 1 mm

Sensor:

• Material: Silver/Silver Chloride (Ag/AgCl)
• Gel system: Wet gel
• Sensor area: 10 mm²
• Gel/measuring area: 154 mm²

Electrode Materials:

• Biocompatible: Yes
• Sensor: Silver/Silver Chloride (Ag/AgCl)
• Sponge: Polyurethane foam (PUR)
• Outer carrier: Polyvinyl chloride foam (PVC)
• Outer adhesive: Acrylate
• Upper layer: Polyvinyl chloride film (PVC)
• Fitting: Polypropylene (PP)
• Connector (stud): Stainless steel
• Eyelet: Silver-coated plastic
• Liner: Polyester/Polyethylene film (PET/PE)

Summary
Designed for precision and durability, these ECG electrodes provide dependable signal quality, strong adhesion, and patient-safe materials—ideal for continuous monitoring and diagnostic applications.
